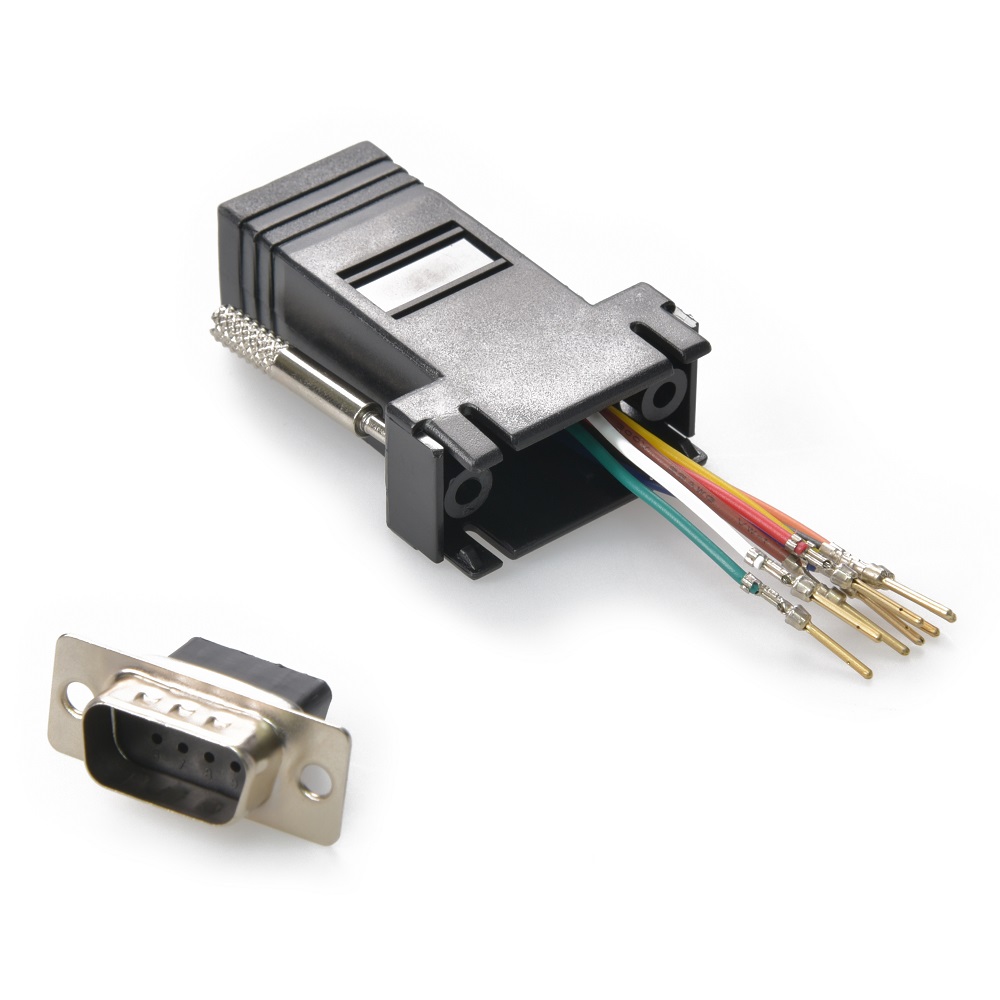

DB9 Female to RJ45 Modular Adapter, Black
This modular adapter has a DB9 female connector that plugs into DB9 RS232 serial port and converts it to an RJ45 connection.
RJ45 Pinout:
Pin1 -- Blue
Pin2 -- Orange
Pin3 -- Black
Pin4 -- Red
Pin5 -- Green
Pin6 -- Yellow
Pin7 -- Brown
Pin8 -- White
* Gold plated pin
* 28AWG wire
* Molded Black color housing
* Thumb screw
In stock
- SKU
- CM-272009BSTK
- Color
- Black
$3.24
$2.59
Description
This modular adapter has a DB9 female connector that plugs into DB9 RS232 serial port and converts it to an RJ45 connection.
RJ45 Pinout:
Pin1 -- Blue
Pin2 -- Orange
Pin3 -- Black
Pin4 -- Red
Pin5 -- Green
Pin6 -- Yellow
Pin7 -- Brown
Pin8 -- White
* Gold plated pin
* 28AWG wire
* Molded Black color housing
* Thumb screw
RJ45 Pinout:
Pin1 -- Blue
Pin2 -- Orange
Pin3 -- Black
Pin4 -- Red
Pin5 -- Green
Pin6 -- Yellow
Pin7 -- Brown
Pin8 -- White
* Gold plated pin
* 28AWG wire
* Molded Black color housing
* Thumb screw
Specifications
| SKU | CM-272009BSTK |
|---|---|
| Country of Origin | China |
| Color | Black |
| Material of Construction | Plastic |
