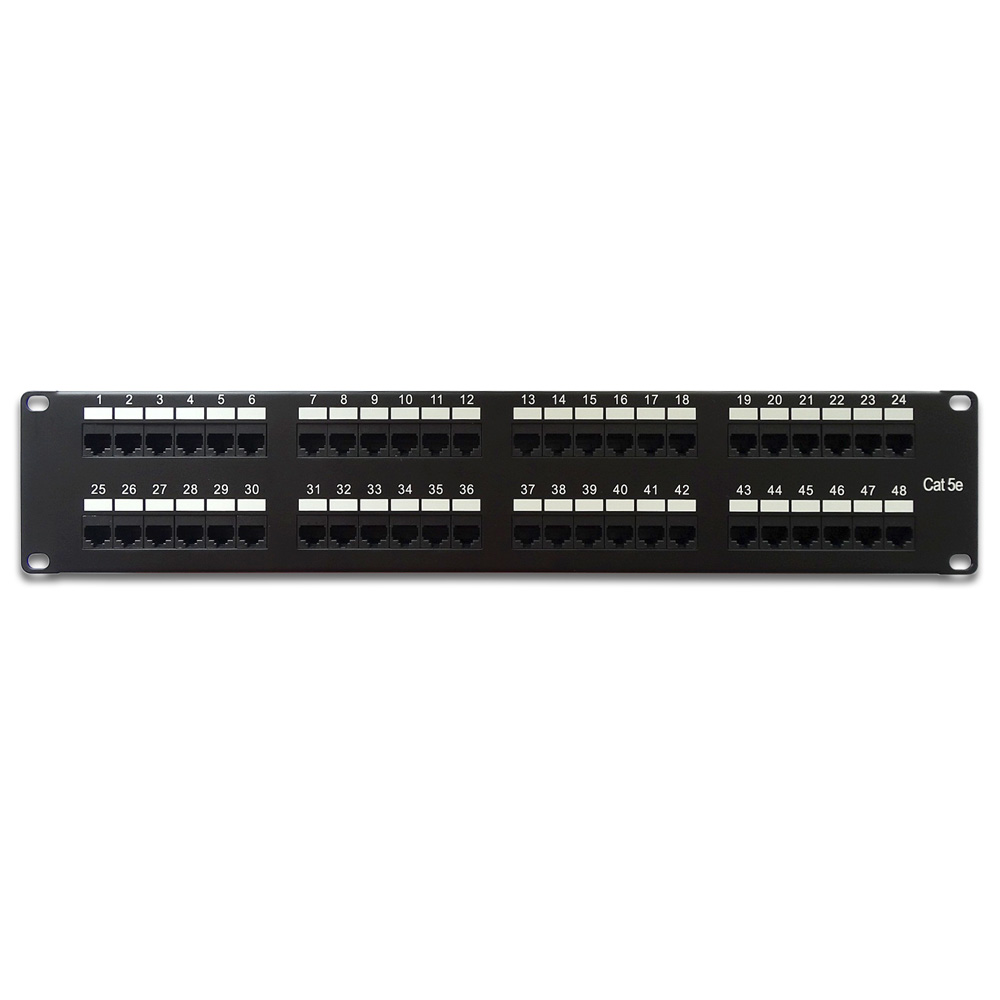

Cat.5E 110 Type Patch Panel 48Port Rackmount
Description
We use 50 micron gold plating on all our patch cable plugs, RJ45 keystone jacks and patch panel RJ45 jacks.
Why 50 micron is important?
UL approved
19 inch 2U rackmount
Meets TIA/EIA-568B.2/568B.2-1 Cat.5E ISO/IEC 11801 and EN 50173-1 specification
Support T568A & B wiring
Wire diameter : 22 ~ 26AWG
Insulation diameter range : 0.70 to 1.40mm
Jack contacts : Phosphor bronze, 50micron gold plate over nickel plating.
IDC contacts : Phosphor bronze, 50micron gold plate over nickel plating.
Safty : UL1863
Flamability : UL 94 VO
Operating temperature : -40 to +70 dgree Celsius
Weight : 1.55LBS
Mounting Hinge: 102216
25 years warranty
Why 50 micron is important?
Specifications
| SKU | CM-102198BSTK |
|---|---|
| Cable Type | Cat.5E |
