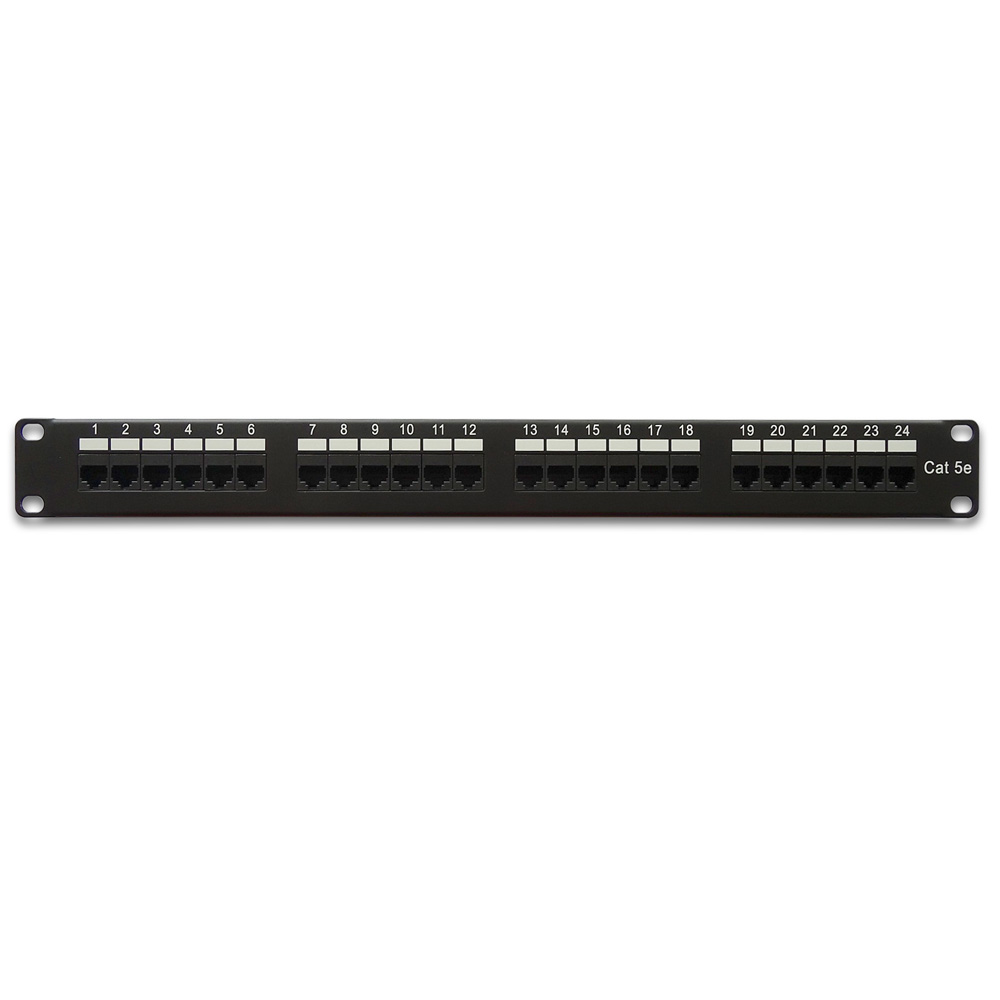

Cat.5E 110 Type Patch Panel 24Port Rackmount
Cat.5E 110 Type Patch Panel 24Port Rackmount
-
SKU
-
CM-102197BSTK
-
Cable Type
-
Cat.5E
Description
UL approved
19 inch 1U rackmount
Meets TIA/EIA-568B.2/568B.2-1 Cat.5E, ISO/IEC 11801 and EN 50173-1 specification
Support T568A & B wiring
Wire diameter: 22 ~ 26AWG
Insulation diameter range: 0.70 to 1.40mm
Jack contacts: Phosphor bronze, 50micron gold plate over nickel plating.
IDC contacts: Phosphor bronze, 50micron gold plate over nickel plating.
Safety: UL1863
Flammability: UL 94 VO
Operating temperature: -40 to +70 degree Celsius
Weight: 1.55LBS
Mounting Hinge: 102215
25 years warranty
Specifications
| SKU |
CM-102197BSTK |
| Cable Type |
Cat.5E |
