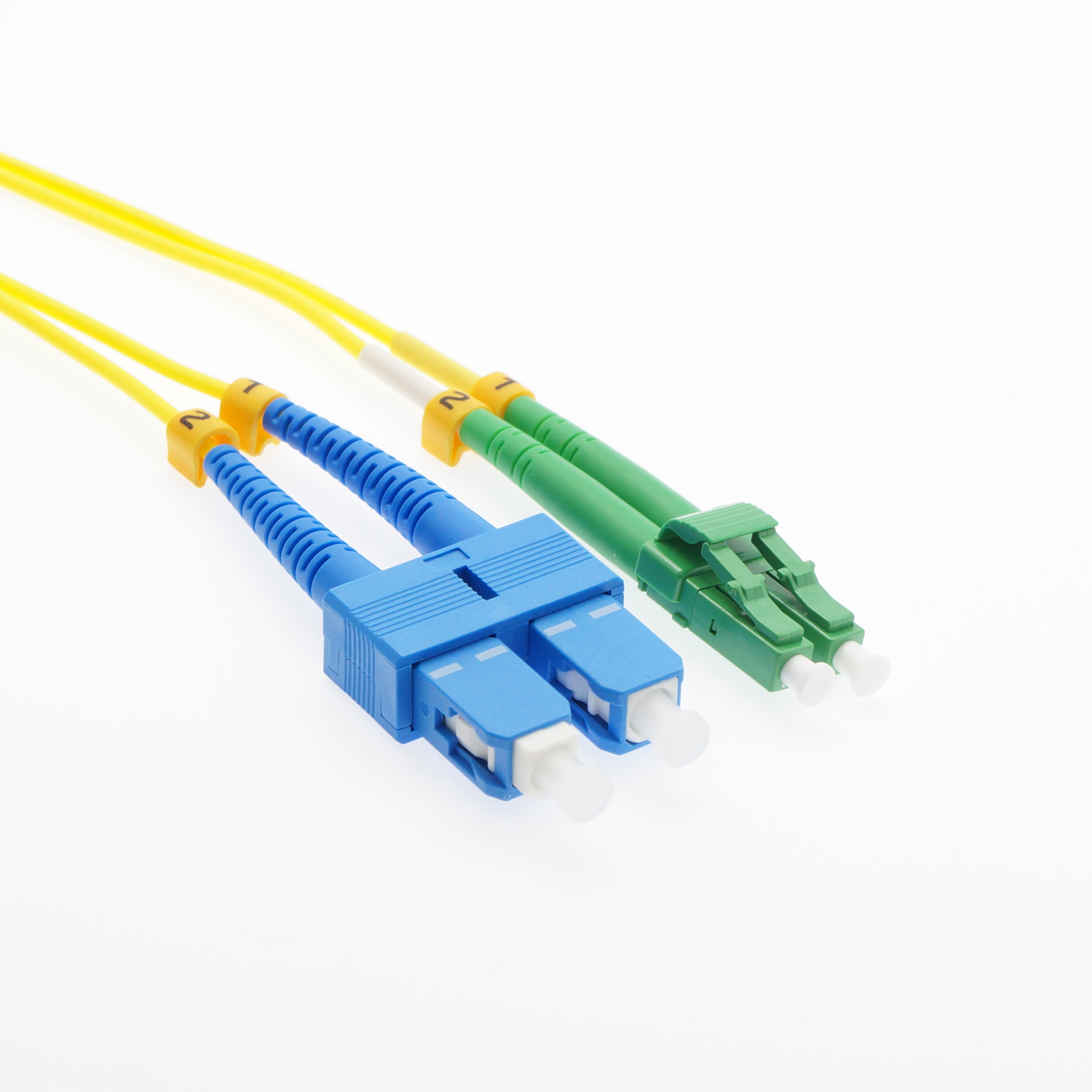

7m SC/UPC-LC/APC Singlemode Duplex LSZH 2.0mm Fiber Optic Patch Cable
* Used to connect patch panels and/or network devices that utilize SC to LC style connectors and require 9/125 Single mode cabling * 100% tested * Test report included in each cable* 1/2 Markers easily identify the TX and RX connector on each end of the assembly
In stock
- SKU
- CM-105438-L2BSTK
- Color
- Yellow
- Cable Type
- SingleMode
- Jacket Material
- LSZH
$15.28
$12.22
Description
* Used to connect patch panels and/or network devices that utilize SC to LC style connectors and require 9/125 Single mode cabling
* 100% tested
* Test report included in each cable
* 1/2 Markers easily identify the TX and RX connector on each end of the assembly
| Connector Type | SC-LC Singlemode | ||
| Polishing | SC/UPC-LC-APC | ||
| Return Loss | A: 55dB - B:60dB |
||
| Insertion Loss | 0.30 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Body type | Duplex | ||
| Nominal Diameter Core | 9/125 µm | ||
| Jacket Material | LSZH | ||
| Operating Temperature Range | -20°C +70°C | ||
| Cable Diameter | 2.0mm |
Specifications
| SKU | CM-105438-L2BSTK |
|---|---|
| Color | Yellow |
| Cable Type | SingleMode |
| Jacket Material | LSZH |
| Fiber Core | 9/125 µm |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.30 dB |
| Fiber Return Loss | 55dB |
