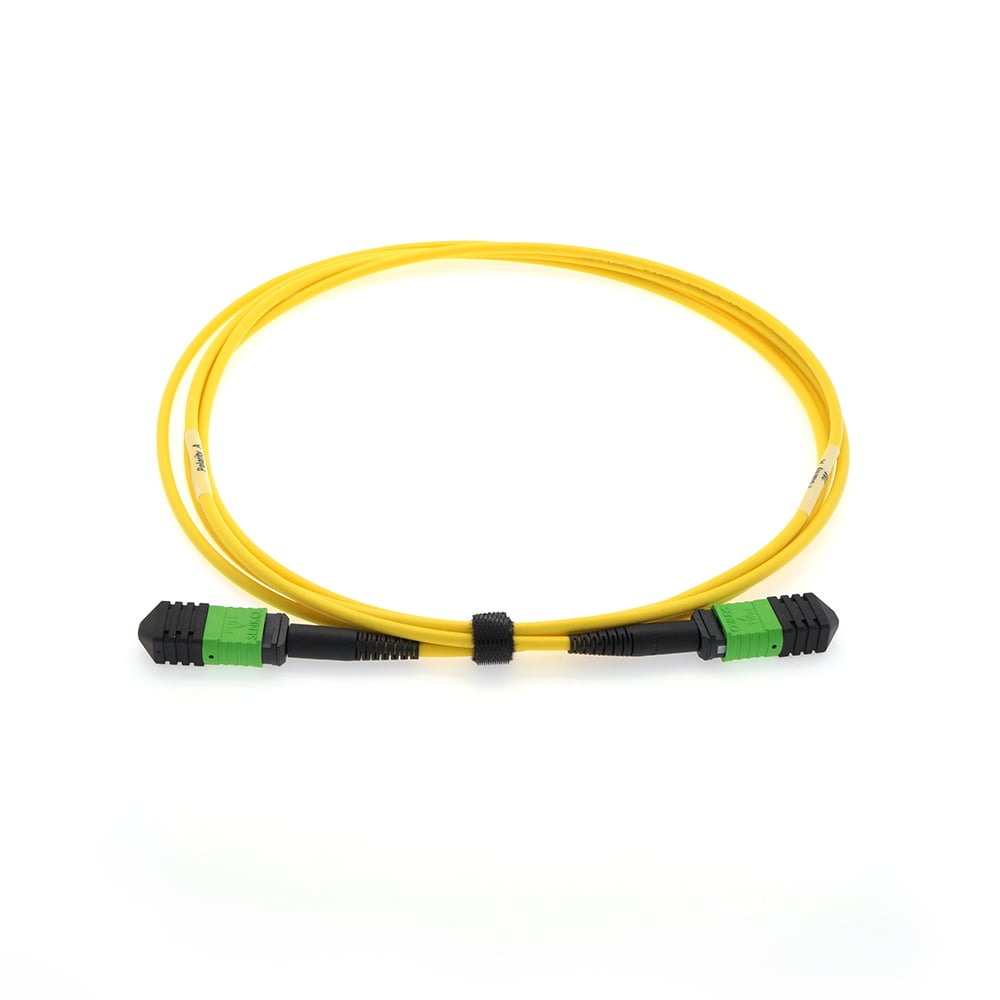

5m Senko MPO/APC F/F 12-Fiber Type A Singlemode Fiber Optic Cable
MPO trunk cable is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With Senko MPO connectors, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
Out of stock
- SKU
- CM-105530BSTK
- Color
- Yellow
- Cable Length
- 5 meters
- Cable Type
- SingleMode
- Jacket Material
- OFNR
$140.70
$112.56
Description
MPO trunk cable is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With Senko MPO connectors, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
| Connector Type | Senko MPO Female to Female | ||
| Polishing | APC | ||
| Return Loss | 60 dB | ||
| Insertion Loss | 0.35dB (0.15dB Typ.) | ||
| Jacket OD | 3mm | ||
| Fiber Mode | Singlemode 9/125m | ||
| Wave Length | 1310/1550nm | ||
| Attenuation at 1310nm | 0.32dB/km |
||
| Jacket Material | OFNR | ||
| Temperature Range | -20°C +70°C |
Specifications
| SKU | CM-105530BSTK |
|---|---|
| Cable Length | 5 meters |
| Connector(s) | MPO/APC |
| Operating Temperature | -20C ~ 70C |
| Color | Yellow |
| Cable Type | SingleMode |
| Jacket Material | OFNR |
