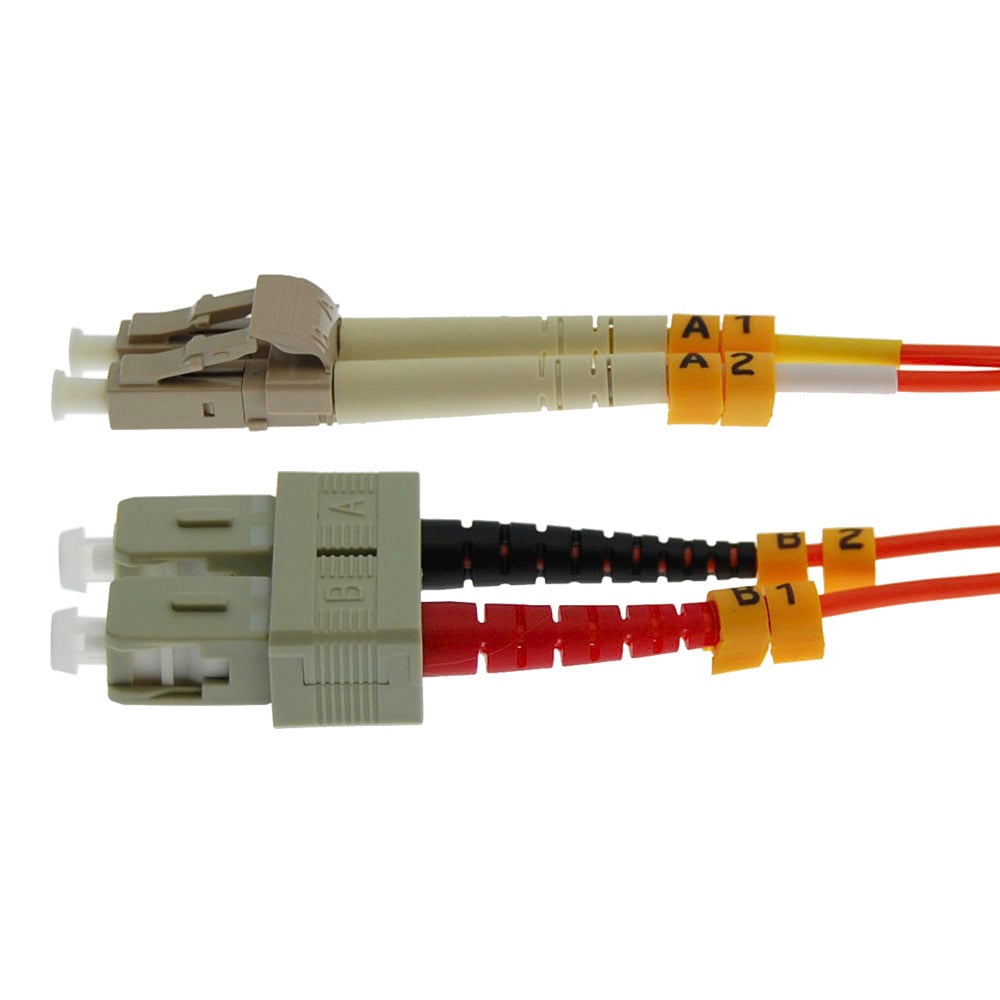

5m LC/UPC SC/UPC OM1 Multimode Duplex Fiber Optic Patch Cable
Description
* Used to connect patch panels and/or network devices that utilize duplex LC to SC style connectors and require OM1 62.5/125 multimode cabling.
* 100% tested
* Test report included in each cable
| Connector Type | LC-SC Multimode | ||
| Polishing | UPC | ||
| Return Loss | 55dB | ||
| Insertion Loss | 0.30dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Cabled Optical Fiber | OM1 | ||
| Nominal Diameter Core | 62.5/125 µm | ||
| Jacket Material | OFNR/LSZH | ||
| Operation Temperature Range |
-20°C +70°C |
Specifications
| SKU | CM-102743BSTK |
|---|---|
| Cable Type | Multimode, OM1 |
| Jacket Material | OFNR/LSZH |
| Fiber Core | 62.5/125 µm |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.30dB |
| Fiber Return Loss | 55dB |
