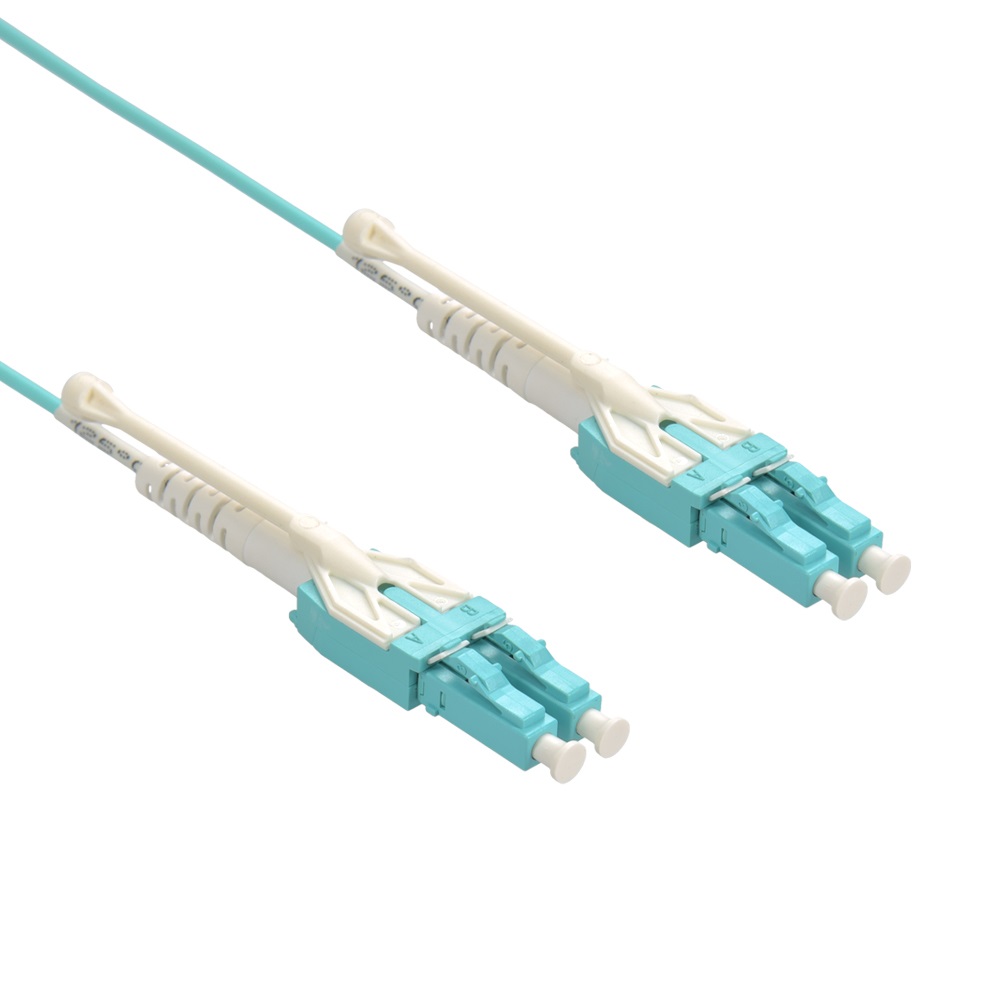

3m Uniboot LC/UPC-LC/UPC OM4 Multimode Duplex Aqua Fiber Optic Patch Cable with Pull Push

In stock

SKU
CM-105063BSTK
Color
Aqua
Cable Type
Multimode, OM4
Jacket Material
OFNR
$33.08
$26.46

Description

The LC-LC uniboot design allows one cable to carry both fibers, reducing cable congestion when routing, and is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles. Pull-Push connector facilitates smooth and easy removal on high density patch panel.


Connector Type LC-LC with Pull Push Tab
Polishing UPC
Return Loss 55 dB
Insertion Loss 0.30 dB (typical)
Ferrule Material Ceramic (zirconia)
Ferrule Diameter 1.25 mm / 2.5 mm
Cabled Optical Fiber Uniboot OM4
Nominal Diameter Core 50/125 µm
Jacket Material OFNR
Temperature Range -20°C +70°C



Specifications

SKU CM-105063BSTK
Color Aqua
Cable Type Multimode, OM4
Jacket Material OFNR
Fiber Core 50/125 µm
Fiber Duplex Yes
Fiber Insertion loss 0.30 dB
Fiber Return Loss 55 dB
