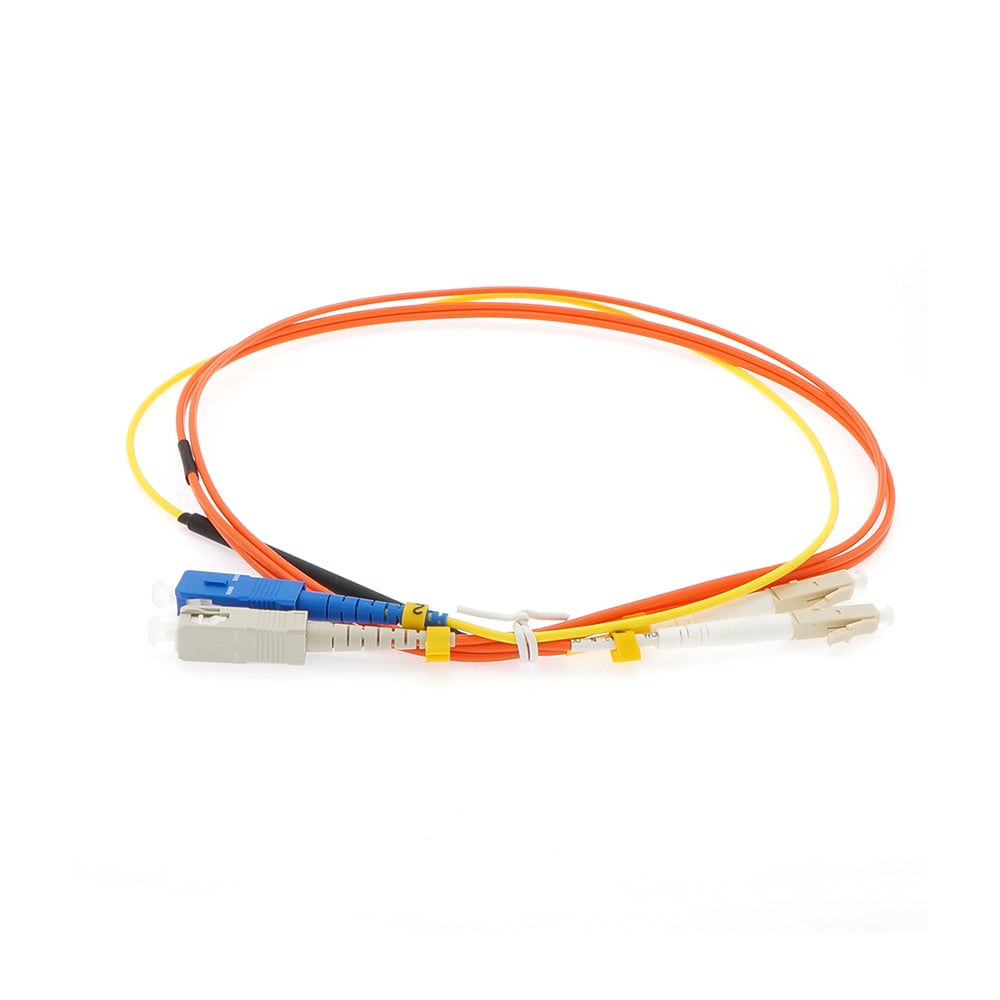

3m Singlemode SC to OM2 LC Duplex Mode Conditioning Fiber Optic Patch Cable

Special Price $35.50 Regular Price $44.38
In stock
Only 10 left
SKU
CM-105241BSTK
With the later network deployment, some network units are gradually transformed from multimode devices to singlemode devices. In the case of coexistence of the two modes, the mode conditioning patch cable is the best feasible solutionfor the interconnection between the two.

Connector Type SC-LC Duplex
Polishing UPC
Return Loss 55dB
Insertion Loss 0.5dB (SM to MM Plus Connector Loss)
Ferrule Material Ceramic (zirconia)
Ferrule Diameter 1.25 mm / 2.5 mm
Jacket OD 2mm
Fiber Mode Singlemode SC / OM2 LC
Jacket Material OFNR/LSZH
Operation Temperature Range -20°C +70°C

More Information
SKU CM-105241BSTK
Color Orange
Cable Length 3 meters
Cable Type OS1 to OM2
Connector(s) LC, SC
Fiber Duplex Type Duplex
Fiber Insertion loss 0.5dB
Fiber Return Loss 55dB
Jacket Material OFNR/LSZH
Operating Temperature -20C ~ 70C
