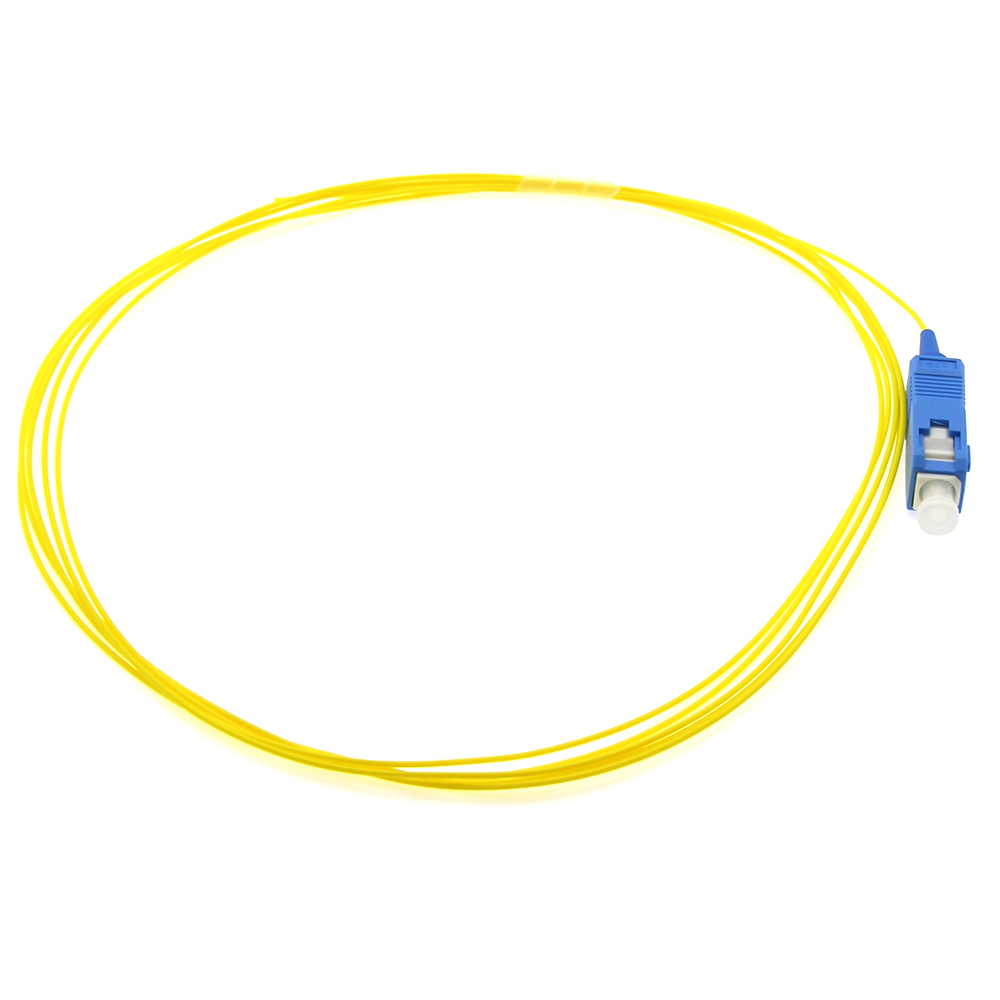

3m SC/UPC Singlemode Pigtail Yellow
Description
Fiber pigtails are ideal for fusion and splicing, our fiber pigtails are quality tested to meet fiber industry standards and the most stringent performance specifications.
Features:
* Low insertion loss* Low back reflection loss
* Ideal for telecommunication networks
* Meets ISO9001 and RoHS
Spcification
| Connector Type | SC Singlemode | ||
| Polishing | UPC | ||
| Return Loss | 55dB | ||
| Insertion Loss | 0.30dB | ||
| Length | 3meter | ||
| OD | 0.9mm |
||
| Ferrule Material | Ceramic (zirconial) | ||
| Operation Temperature Range | -20°C +70°C | ||
| Jacket Color | Yellow |
||
| Jacket Material | OFNR/LSZH |
Specifications
| SKU | CM-105154BSTK |
|---|---|
| Cable Length | 3 meters |
| Connector(s) | SC/UPC-Pigtail |
| Operating Temperature | -20C ~ 70C |
| Color | Yellow |
| Cable Type | SingleMode |
| Jacket Material | OFNR/LSZH |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.30dB |
| Fiber Return Loss | 55dB |
