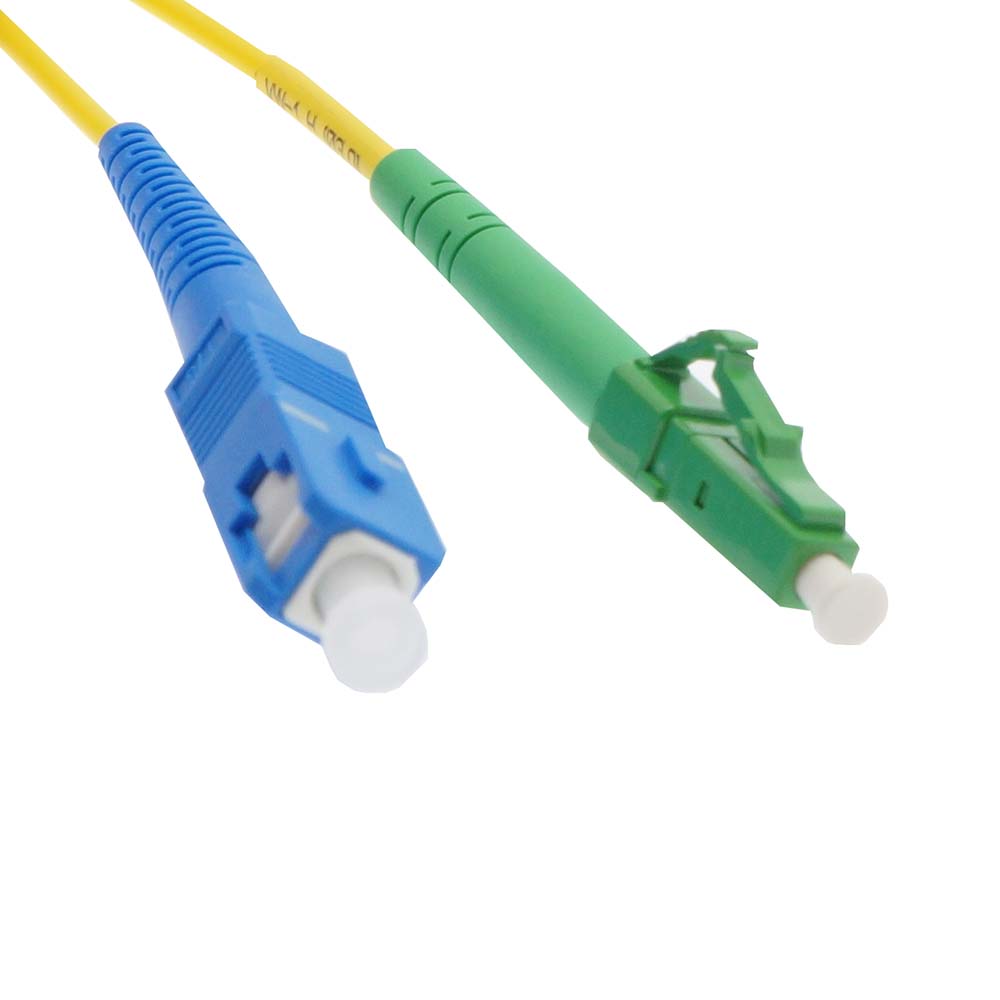

3m SC/UPC-LC/APC Singlemode Simplex OFNR 2.0mm Fiber Optic Patch Cable
* Used to connect patch panels and/or network devices that utilize SC to LC style connectors and require 9/125 Single mode cabling
* Flexible boots are able to be bent and set in different orientations to accommodate tight spaces.
* 1/2 Markers easily identify the TX and RX connector on each end of the assembly
Out of stock
- SKU
- CM-105473BSTK
- Color
- Yellow
- Cable Type
- SingleMode
- Jacket Material
- OFNR/LSZH
$6.47
$5.18
Description
* Used to connect patch panels and/or network devices that utilize SC to LC style connectors and require 9/125 Single mode cabling
* Flexible boots are able to be bent and set in different orientations to accommodate tight spaces.
* 1/2 Markers easily identify the TX and RX connector on each end of the assembly
* Flexible boots are able to be bent and set in different orientations to accommodate tight spaces.
* 1/2 Markers easily identify the TX and RX connector on each end of the assembly
| Connector Type | SC-LC Simplex Singlemode | ||
| Polishing | SC/UPC-LC-APC | ||
| Return Loss | A: 55dB - B:60dB |
||
| Insertion Loss | 0.25 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Body type | Simplex | ||
| Nominal Diameter Core | 9/125 µm | ||
| Jacket Material | OFNR/LSZH | ||
| Temperature Range | -20°C +70°C |
Specifications
| SKU | CM-105473BSTK |
|---|---|
| Color | Yellow |
| Cable Type | SingleMode |
| Jacket Material | OFNR/LSZH |
| Fiber Core | 9/125 µm |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.25 dB |
| Fiber Return Loss | 55dB |
