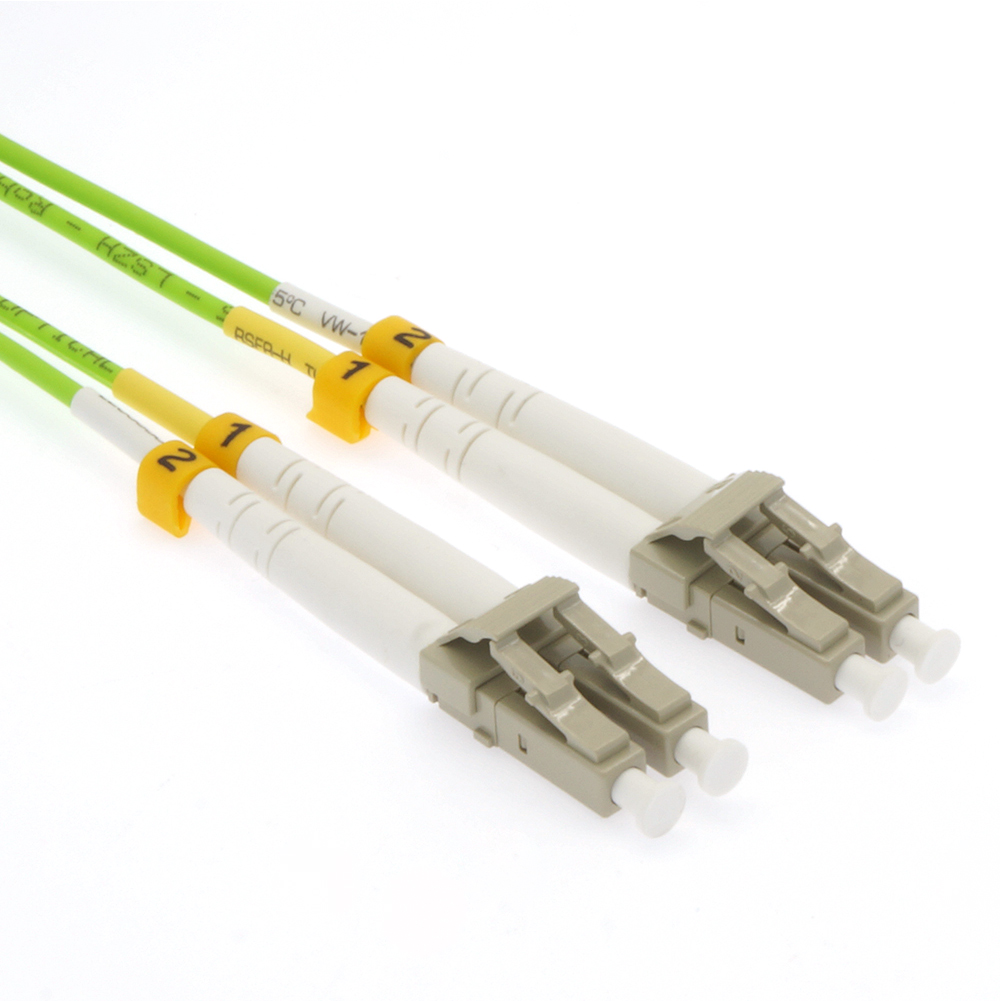

3m LC/UPC-LC/UPC OM5 Multimode Duplex OFNR 2.0mm Green Fiber Optic Patch Cable
* Used to connect patch panels and/or network devices that utilize duplex LC to LC style connectors and require OM5 50/125 multimode cabling. * 100% tested* Test report included in each cable* Lime green jacket color* 1/2 mark ring
In stock
- SKU
- CM-105226BSTK
- Color
- Green
- Cable Type
- Multimode, OM5
- Jacket Material
- OFNR/LSZH
$24.80
$19.84
Description
* Used to connect patch panels and/or network devices that utilize duplex LC to LC style connectors and require OM5 50/125 multimode cabling.
* 100% tested
* Test report included in each cable
* Lime green jacket color
* 1/2 mark ring
| Connector Type | LC-LC Multimode | ||
| Polishing | UPC | ||
| Return Loss | 55 dB | ||
| Insertion Loss | 0.30 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Cabled Optical Fiber | OM5 | ||
| Nominal Diameter Core | 50/125 µm | ||
| Jacket Material | OFNR/LSZH | ||
| Operation Temperature Range | -20°C +70°C |
Specifications
| SKU | CM-105226BSTK |
|---|---|
| Color | Green |
| Cable Type | Multimode, OM5 |
| Jacket Material | OFNR/LSZH |
| Fiber Core | 50/125 µm |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.30 dB |
| Fiber Return Loss | 55 dB |
