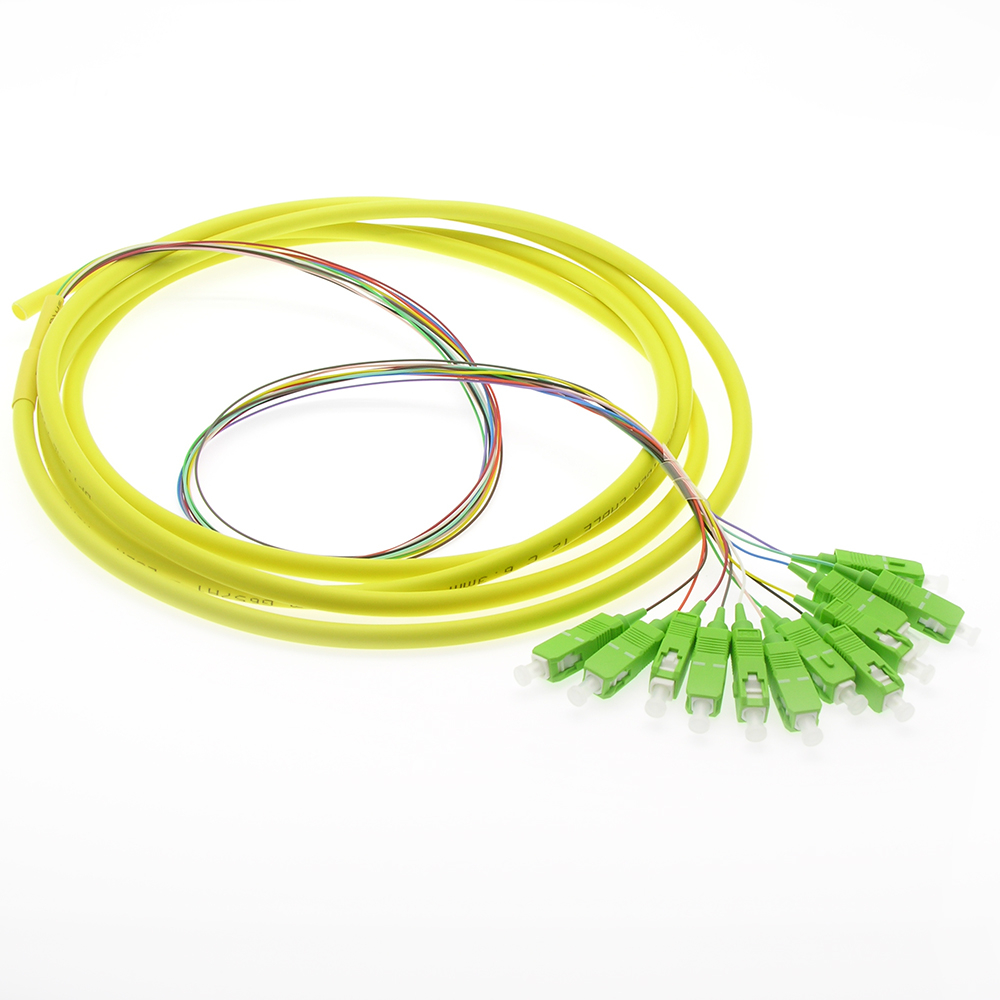

3m 12-Fiber SC/APC Singlemode Pigtail Yellow
Description
12 Fiber jacketed singlemode pigtails are ideal for fusion splicing, our fiber pigtails are quality tested to meet fiber industry standards and the most stringent performance specifications.
Features
* Low insertion loss* Low back reflection loss
* Ideal for telecommunication networks
* Meets ISO9001 and RoHs
| Connector Type | SC Singlemode | ||
| Polishing | UPC | ||
| Fiber Count | 12 | ||
| Length | 3meter | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Operation Temperature Range | -20°C +70°C |
||
| Jacketing | Jacketed | ||
| OD | 0.9mm | ||
| Return Loss | 55 dB |
||
| Insertion Loss | 0.30 dB |
||
| Jacket Material | OFNR/LSZH | ||
| Color | Yellow |
Specifications
| SKU | CM-104025BSTK |
|---|---|
| Cable Length | 3 meters |
| Connector(s) | SC/APC-Pigtail |
| Operating Temperature | -20C ~ 70C |
| Color | Yellow |
| Cable Type | SingleMode |
| Jacket Material | OFNR/LSZH |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.30 dB |
| Fiber Return Loss | 55 dB |
