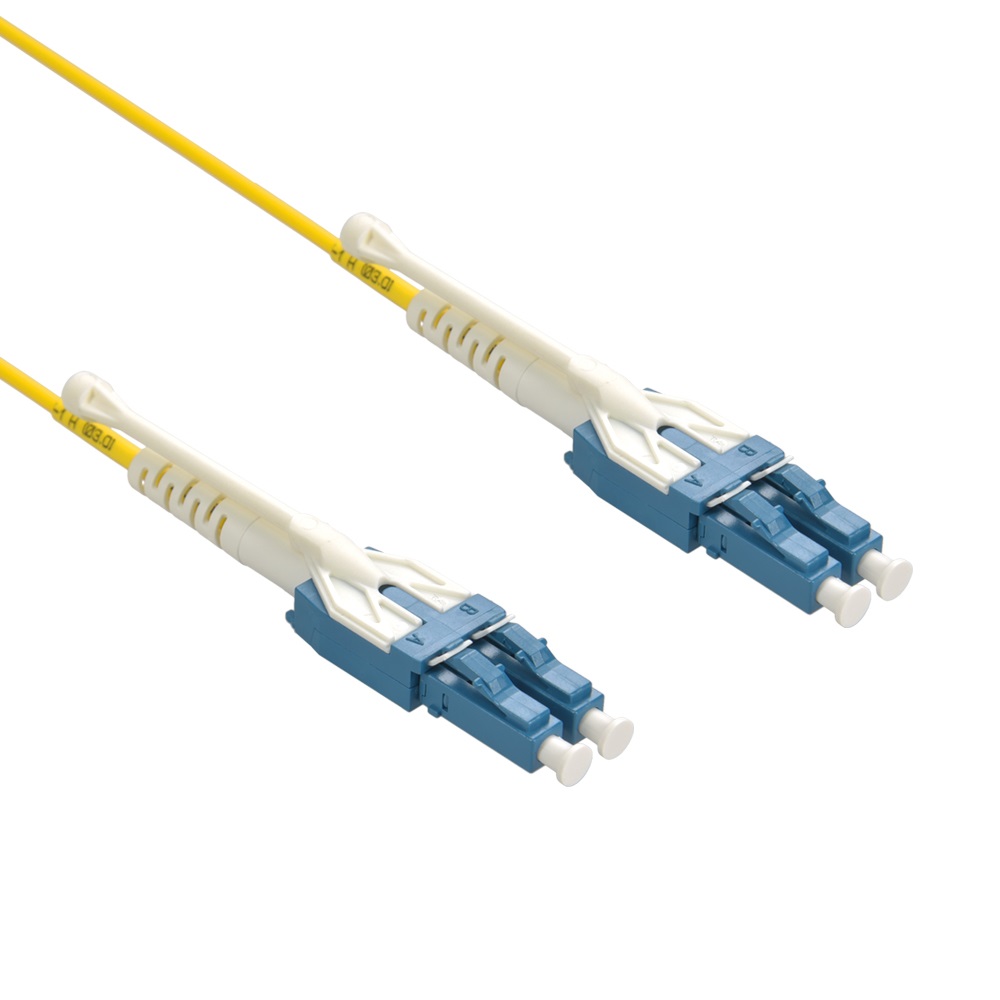

2m Uniboot LC/UPC LC/UPC Singlemode Duplex Fiber Optic Patch Cable with Pull Push Tab
The LC-LC uniboot design allows one cable to carry both fibers, reducing cable congestion when routing, and is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles. Pull-Push connector facilitates smooth and easy removal on high density patch panel.
Connector Type
LC-LC Duplex Singlemode
Polishing
UPC
Return Loss
55 dB
Insertion Loss
0.30 dB
Ferrule Material
Ceramic (zirconia)
Ferrule Diameter
1.25 mm / 2.5 mm
Body type
Duplex
Nominal Diameter Core
9/125 µm
Jacket Material
OFNR/LSZH
Operation Temperature Range
-20°C +70°C
In stock
- SKU
- CM-105092BSTK
- Color
- Yellow
- Cable Type
- SingleMode
- Jacket Material
- OFNR/LSZH
$19.36
$15.49
Description
The LC-LC uniboot design allows one cable to carry both fibers, reducing cable congestion when routing, and is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles. Pull-Push connector facilitates smooth and easy removal on high density patch panel.
| Connector Type | LC-LC Duplex Singlemode | ||
| Polishing | UPC | ||
| Return Loss | 55 dB | ||
| Insertion Loss | 0.30 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Body type | Duplex | ||
| Nominal Diameter Core | 9/125 µm | ||
| Jacket Material | OFNR/LSZH | ||
| Operation Temperature Range | -20°C +70°C |
Specifications
| SKU | CM-105092BSTK |
|---|---|
| Color | Yellow |
| Cable Type | SingleMode |
| Jacket Material | OFNR/LSZH |
| Fiber Core | 9/125 µm |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.30 dB |
| Fiber Return Loss | 55 dB |
