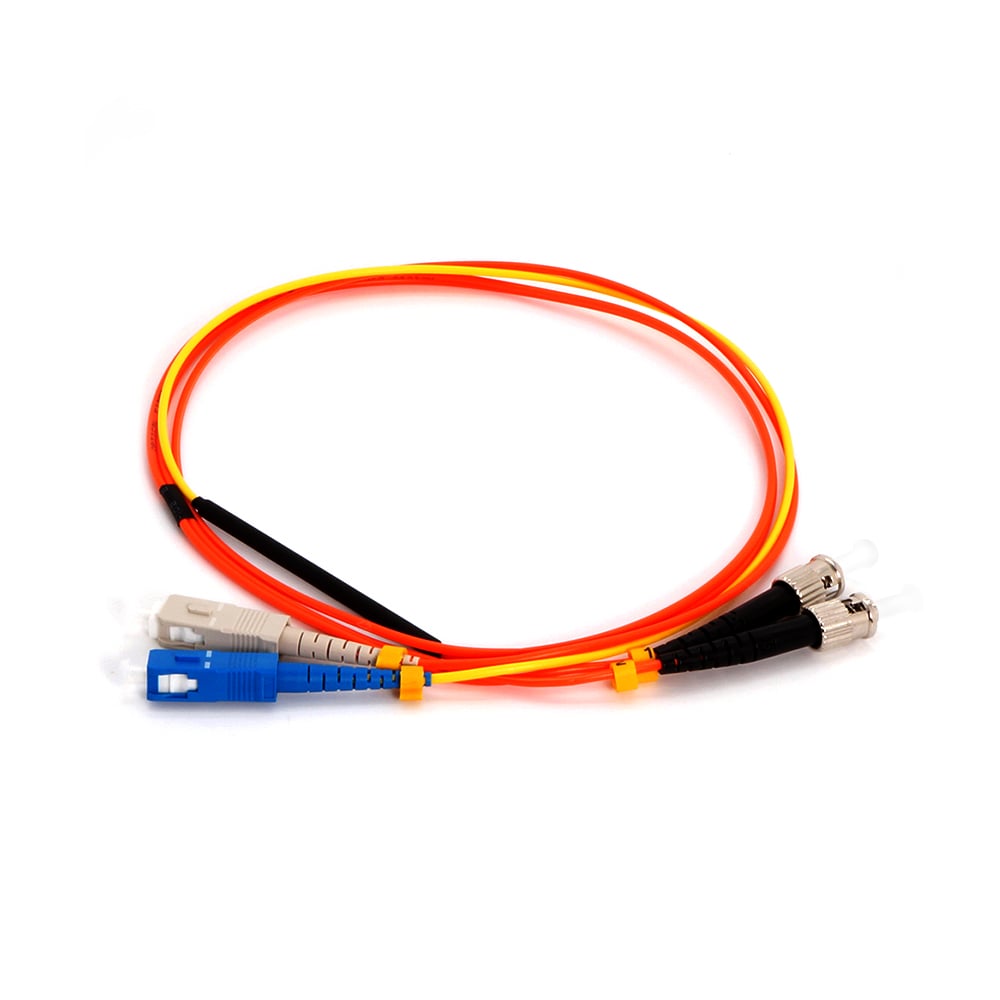

2m Singlemode SC to OM2 ST Duplex Mode Conditioning Fiber Optic Patch Cable
With the later network deployment, some network units are gradually transformed from multimode devices to singlemode devices. In the case of coexistence of the two modes, the mode conditioning patch cable is the best feasible solutionfor the interconnection between the two.
In stock
- SKU
- CM-105246BSTK
- Cable Type
- OS1 to OM2
- Jacket Material
- OFNR/LSZH
$47.02
$37.62
Description
With the later network deployment, some network units are gradually transformed from multimode devices to singlemode devices. In the case of coexistence of the two modes, the mode conditioning patch cable is the best feasible solutionfor the interconnection between the two.
| Connector Type | SC-ST Duplex | ||
| Polishing | UPC | ||
| Return Loss | 55dB | ||
| Insertion Loss | 0.5dB (SM to MM Plus Connector Loss) | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Jacket OD | 2mm | ||
| Fiber Mode | Singlemode SC / OM2 ST | ||
| Jacket Material | OFNR/LSZH | ||
| Operation Temperature Range | -20°C +70°C |
Specifications
| SKU | CM-105246BSTK |
|---|---|
| Cable Type | OS1 to OM2 |
| Jacket Material | OFNR/LSZH |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.5dB |
| Fiber Return Loss | 55dB |
