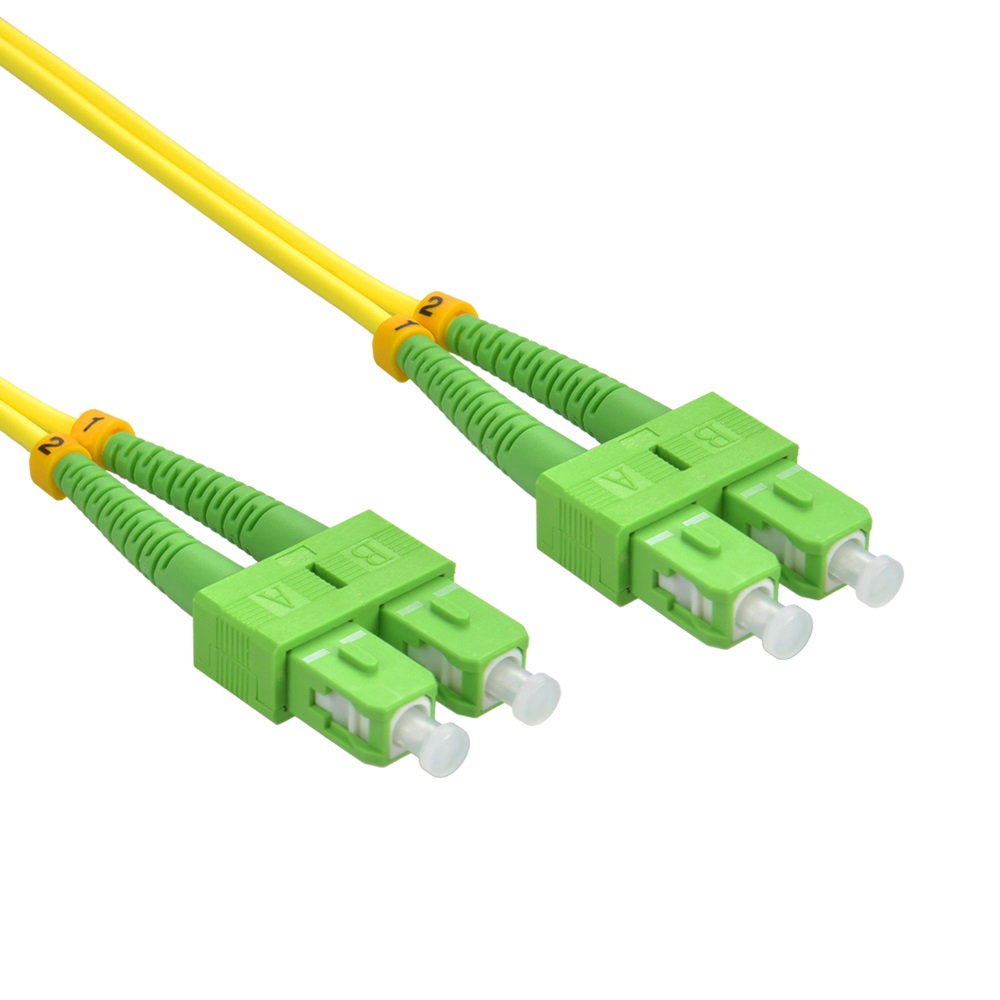

2m SC/APC-SC/APC Singlemode Duplex OFNR 2.0mm Fiber Optic Patch Cable
* Used to connect patch panels and/or network devices that utilize SC to SC style connectors and require 9/125 Single mode cabling
* 100% tested
* Test report included in each cable
* 1/2 Markers easily identify the TX and RX connector on each end of the assembly
In stock
- SKU
- CM-105114BSTK
- Color
- Yellow
- Cable Type
- SingleMode
- Jacket Material
- OFNR
$11.49
$9.19
Description
* Used to connect patch panels and/or network devices that utilize SC to SC style connectors and require 9/125 Single mode cabling
* 100% tested
* Test report included in each cable
* 1/2 Markers easily identify the TX and RX connector on each end of the assembly
* 100% tested
* Test report included in each cable
* 1/2 Markers easily identify the TX and RX connector on each end of the assembly
| Connector Type | SC-SC Singlemode | ||
| Polishing | APC |
||
| Return Loss | 60dB | ||
| Insertion Loss | 0.30 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Body type | Duplex | ||
| Nominal Diameter Core | 9/125 µm | ||
| Jacket Material | OFNR | ||
| Temperature Range | -20°C +70°C |
Specifications
| SKU | CM-105114BSTK |
|---|---|
| Color | Yellow |
| Cable Type | SingleMode |
| Jacket Material | OFNR |
| Fiber Core | 9/125 µm |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.30 dB |
| Fiber Return Loss | 60dB |
