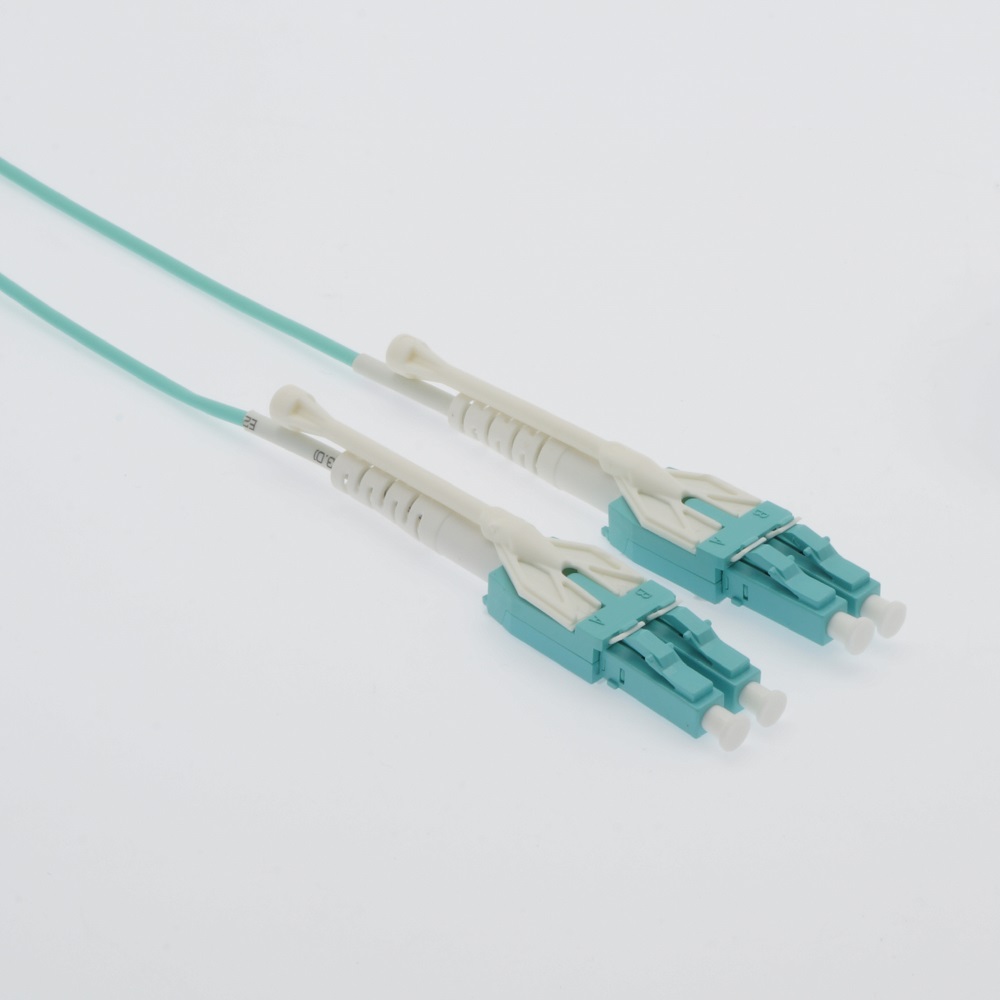

20m Uniboot LC/UPC-LC/UPC OM3 Multimode Duplex Aqua Fiber Optic Patch Cable with Pull Push
Description
Fiber pigtails are ideal for fusion and splicing, our fiber pigtails are quality tested to meet fiber industry standards and the most stringent performance specifications.
Features:
* Low insertion loss* Low back reflection loss
* Ideal for telecommunication networks
* Meets ISO9001, ROHS and Bell Core GR 326-core standards
Specs:
| Connector type | LC Simplex SM | ||||||
| Polishing | UPC | ||||||
| Return loss | 55dB | ||||||
| Length | 3.0m | ||||||
| OD | 0.9mm | ||||||
| Insertion loss | Max 0.30dB, Typical <0.20dB | ||||||
| Ferrule material | Ceramic (zirconia) | ||||||
| Ferrule diameter | 1.25mm / 2.5mm | ||||||
| Temperature range | -20 °C to +70 °C | ||||||
| Jacket Color | Yellow | ||||||
| Jacket type | LSZH/OFNR | ||||||
| Attenuation | 0,4 / 0,4 / 0,4 | ||||||
Specifications
| SKU | CM-105020BSTK |
|---|---|
| Color | Aqua |
| Cable Type | Multimode, OM3 |
| Jacket Material | OFNR |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.30dB |
| Fiber Return Loss | 55dB |
