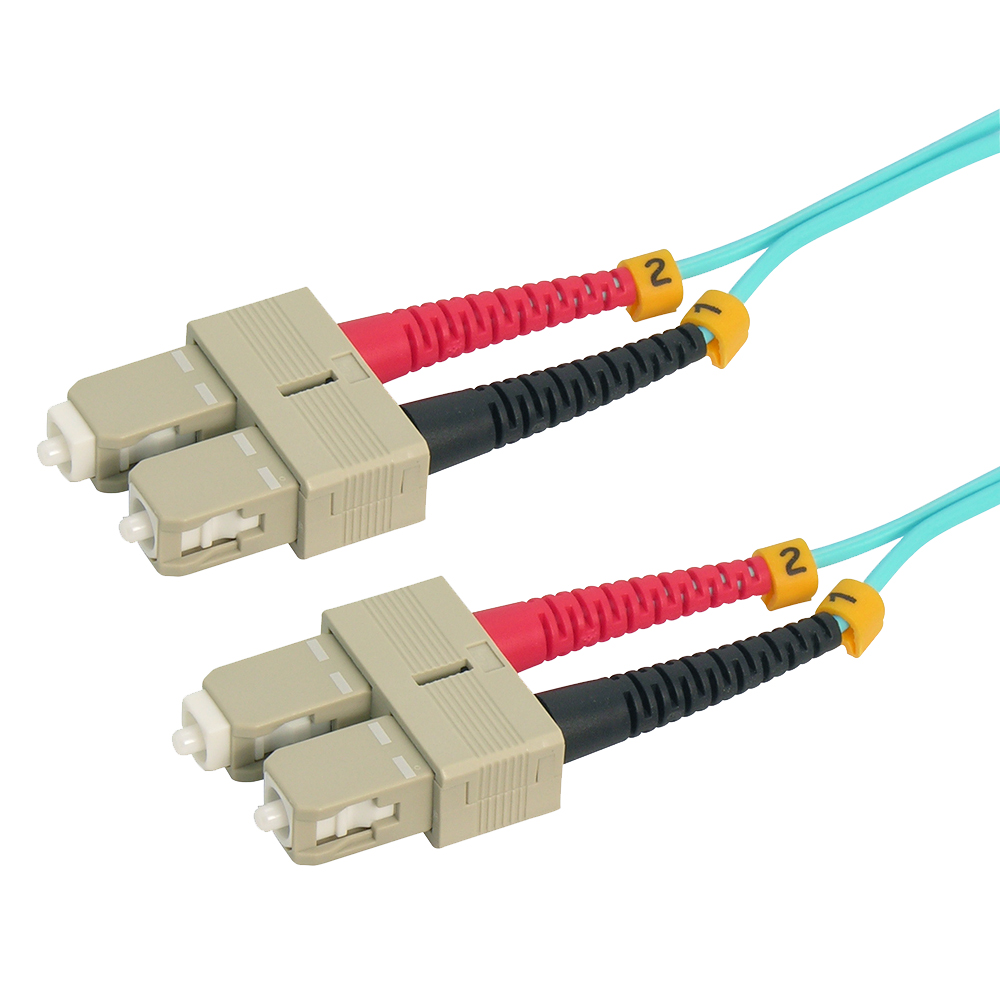

20m SC/UPC SC/UPC OM4 Multimode Duplex Aqua Fiber Optic Patch Cable
Description
CableMax OM4 fiber optic cables are constructed of high quality UPC polished ceramic ferrules and SC-SC connectors. This higher bandwidth 100Gig multimode patch cable has high-quality fiber glass for high speed, low loss, data transmission.
* Data Transfer Rate : 10Gig / 40Gig / 100Gig
* Bandwidth: 4700MHz
* Core Size: 50/125 Micron
* Jacket Color: Aqua
* Mark RING
| Connector Type | SC-SC Multimode | ||
| Polishing | UPC | ||
| Return Loss | 20 dB | ||
| Insertion Loss | 0,30 dB (typical) | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Cabled Optical Fiber | OM4 | ||
| Nominal Diameter Core | 50/125 µm | ||
| Jacket Material | OFNR | ||
| Temperature Range | -20°C +70°C |
Specifications
| SKU | CM-105089BSTK |
|---|---|
| Color | Aqua |
| Cable Type | Multimode, OM4 |
| Jacket Material | OFNR |
| Fiber Core | 50/125 µm |
| Fiber Duplex | Yes |
