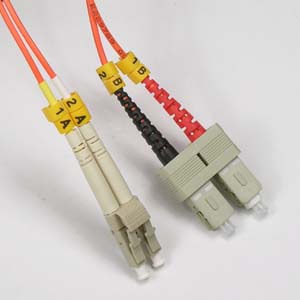

1m LC/UPC-SC/UPC OM2 Multimode Duplex OFNR Fiber Optic Patch Cable
Description
* Used to connect patch panels and/or network devices that utilize duplex LC-SC style connectors and require OM2 50/125 multimode cabling
* 100% tested
* Test report included in each cable
* 100% tested
* Test report included in each cable
| Connector Type | LC-SC Multimode | ||
| Polishing | UPC | ||
| Return Loss | 55 dB | ||
| Insertion Loss | 0.30 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Cabled Optical Fiber | OM2 | ||
| Nominal Diameter Core | 50/125 µm | ||
| Jacket Material | OFNR/LSZH | ||
| Operation Temperature Range | -20°C +70°C |
Specifications
| SKU | CM-102768BSTK |
|---|---|
| Color | Orange |
| Cable Type | Multimode, OM2 |
| Jacket Material | OFNR/LSZH |
| Fiber Core | 50/125 µm |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.30 dB |
| Fiber Return Loss | 55 dB |
