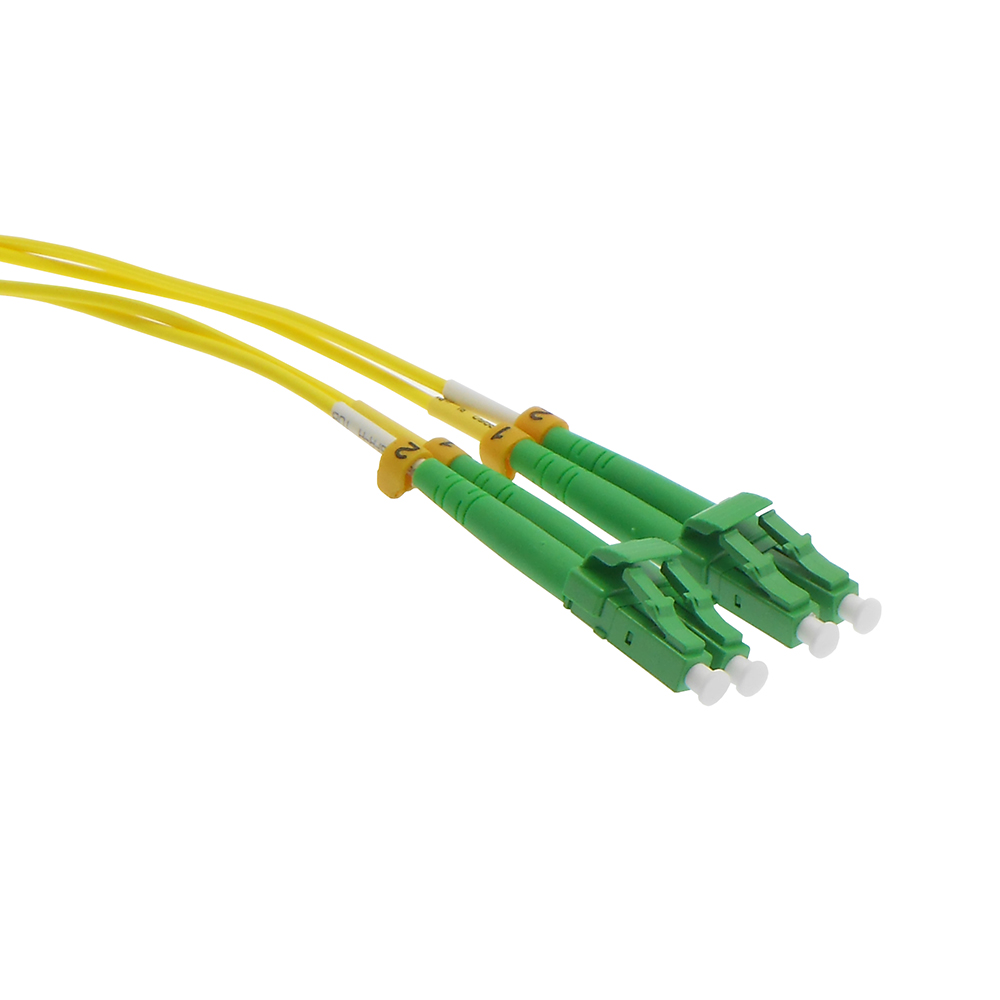

1m LC/APC LC/APC Singlemode Duplex OFNR 2.0mm Fiber Optic Patch Cable
* Used to connect patch panels and/or network devices that utilize LC to LC style connectors and require 9/125 Single mode cabling.* 100% tested * Test report included in each cable* 1/2 Markers easily identify the TX and RX connector on each end of the assembly.
Out of stock
- SKU
- CM-105098BSTK
- Color
- Yellow
- Cable Type
- SingleMode
- Jacket Material
- OFNR
$11.37
$9.10
Description
* Used to connect patch panels and/or network devices that utilize LC to LC style connectors and require 9/125 Single mode cabling.
* 100% tested
* Test report included in each cable
* 1/2 Markers easily identify the TX and RX connector on each end of the assembly.
| Connector Type | LC-LC Duplex Singlemode | ||
| Polishing | APC | ||
| Return Loss | 60dB | ||
| Insertion Loss | 0.30 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Body type | Duplex | ||
| Nominal Diameter Core | 9/125 µm | ||
| Jacket Material | OFNR | ||
| Operation Temperature Range | -20°C +70°C | ||
| Cable Diameter | 2.0mm |
Specifications
| SKU | CM-105098BSTK |
|---|---|
| Color | Yellow |
| Cable Type | SingleMode |
| Jacket Material | OFNR |
| Fiber Core | 9/125 µm |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.30 dB |
| Fiber Return Loss | 60dB |
