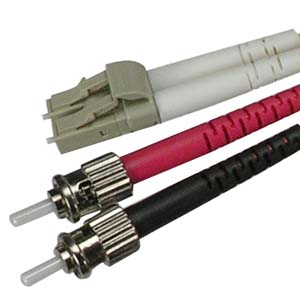

15m LC/UPC ST/UPC OM2 Multimode Duplex LSZH Fiber Optic Patch Cable
* Used to connect patch panels and/or network devices that utilize duplex LC-ST style connectors and require OM2 50/125 multimode cabling
* Ceramic ferrules provide precise alignment
* Integrated clip ensures correct A/B orientation
* Connectors utilize a UPC polish
In stock
- SKU
- CM-102948-L2BSTK
- Color
- Orange
- Cable Type
- Multimode, OM2
- Jacket Material
- LSZH
$28.22
$22.58
Description
* Used to connect patch panels and/or network devices that utilize duplex LC-ST style connectors and require OM2 50/125 multimode cabling
* Ceramic ferrules provide precise alignment
* Integrated clip ensures correct A/B orientation
* Connectors utilize a UPC polish
| Connector Type | LC-ST Multimode | ||
| Polishing | UPC | ||
| Return Loss | 35 dB | ||
| Insertion Loss | 0.2 dB (typical) | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Cabled Optical Fiber | OM2 | ||
| Nominal Diameter Core | 50/125 µm | ||
| Jacket Material | LSZH | ||
| Temperature Range | -20°C +70°C |
Specifications
| SKU | CM-102948-L2BSTK |
|---|---|
| Color | Orange |
| Cable Type | Multimode, OM2 |
| Jacket Material | LSZH |
| Fiber Core | 50/125 µm |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.2 dB |
| Fiber Return Loss | 35 dB |
