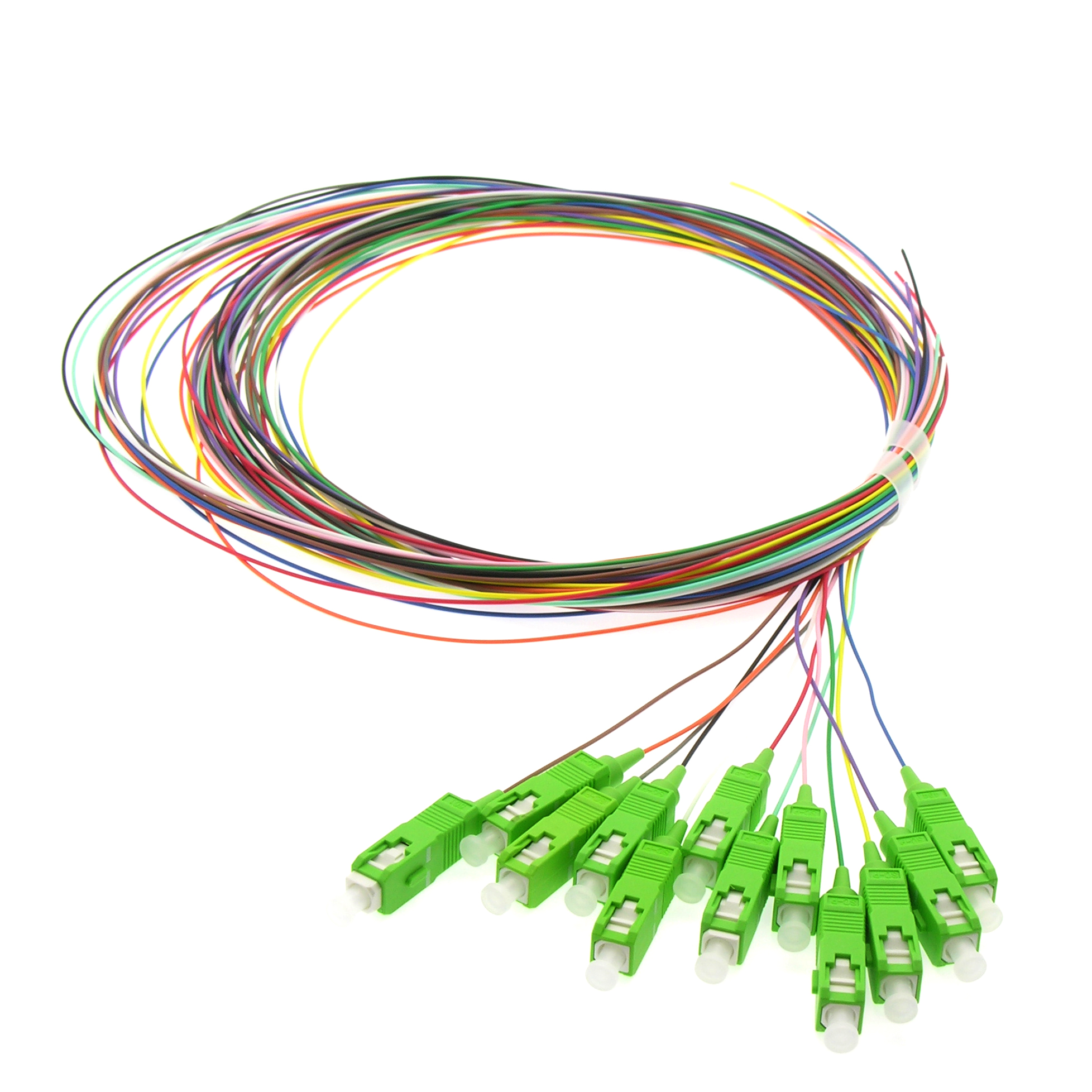

12-Pck 2m SC/APC Multicolor Pigtail
Description
12 Fiber non-jacketed singlemode multicolor pigtails are ideal for fusion splicing, our fiber pigtails are quality tested to meet fiber industry standards and the most stringent performance specifications.
Features
* Low insertion loss* Low back reflection loss
* Ideal for telecommunication networks
* Meets ISO9001 and RoHs
| Connector Type | SC Singlemode | ||
| Polishing | APC | ||
| Fiber Count | 12 | ||
| Length | 2meter | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Operation Temperature Range | -20°C +70°C |
||
| Jacketing | Non-Jacketed | ||
| OD | 0.9mm | ||
| Return Loss | 55 dB |
||
| Insertion Loss | 0.30 dB |
||
| Jacket Material | OFNR/LSZH | ||
| Color | Multicolor |
Specifications
| SKU | CM-104030BSTK |
|---|---|
| Cable Length | 2 meters |
| Connector(s) | SC/APC-Pigtail |
| Operating Temperature | -20C ~ 70C |
| Color | Multi |
| Jacket Material | LSZH |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.30 dB |
| Fiber Return Loss | 55 dB |
