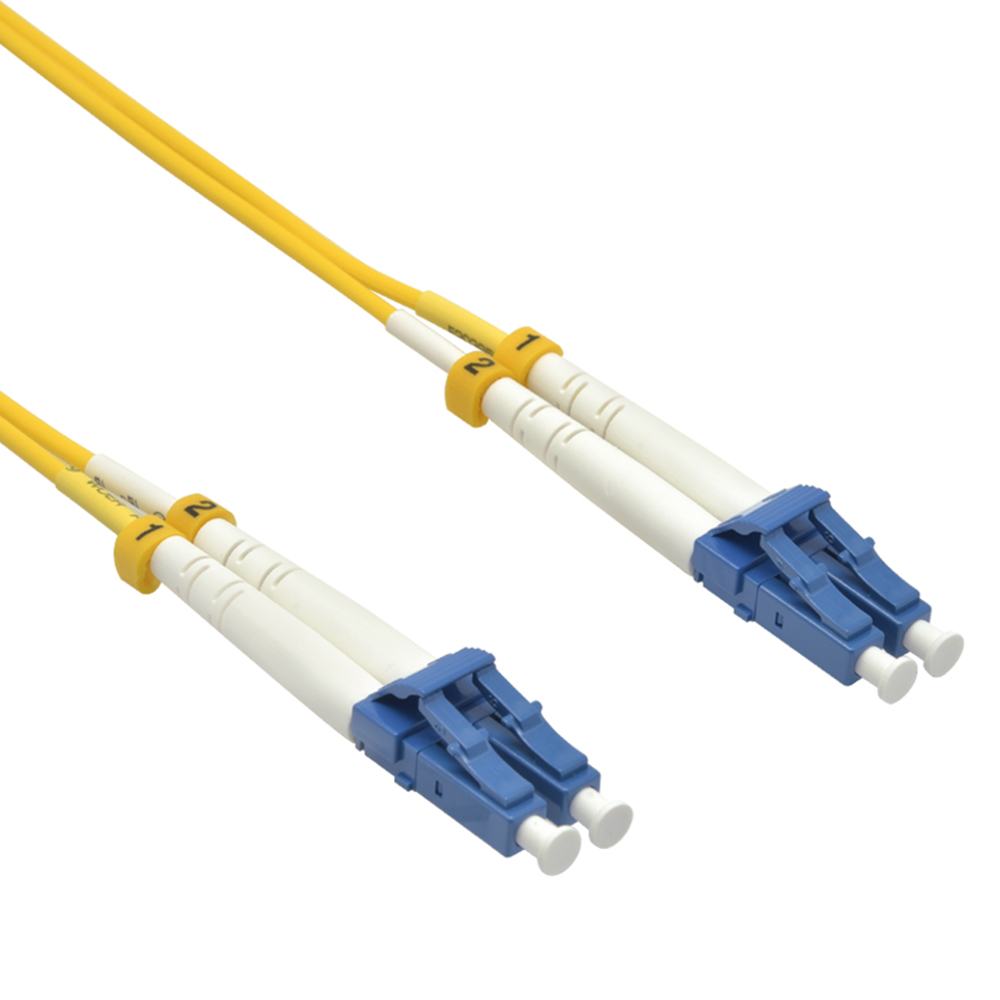

10m LC/UPC-LC/UPC Singlemode Duplex OFNR 2.0mm Fiber Optic Patch Cable
* Used to connect patch panels and/or network devices that utilize LC to LC style connectors and require 9/125 Single mode cabling* 100% tested* Test report inclueded in each cable* 1/2 Markers easily identify the TX and RX connector on each end of the assembly
In stock
- SKU
- CM-102856BSTK
- Color
- Yellow
- Cable Type
- SingleMode
- Jacket Material
- OFNR
$18.75
$15.00
Description
* Used to connect patch panels and/or network devices that utilize LC to LC style connectors and require 9/125 Single mode cabling
* 100% tested
* Test report inclueded in each cable
* 1/2 Markers easily identify the TX and RX connector on each end of the assembly
| Connector Type | LC-LC Singlemode | ||
| Polishing | UPC | ||
| Return Loss | 55 dB | ||
| Insertion Loss | 0.30 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Body type | Duplex | ||
| Nominal Diameter Core | 9/125 µm | ||
| Jacket Material | OFNR | ||
| Operation Temperature Range | -20°C +70°C | ||
| Cable Diamter | 2.0mm |
Specifications
| SKU | CM-102856BSTK |
|---|---|
| Color | Yellow |
| Cable Type | SingleMode |
| Jacket Material | OFNR |
| Fiber Core | 9/125 µm |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 0.30 dB |
| Fiber Return Loss | 55 dB |
