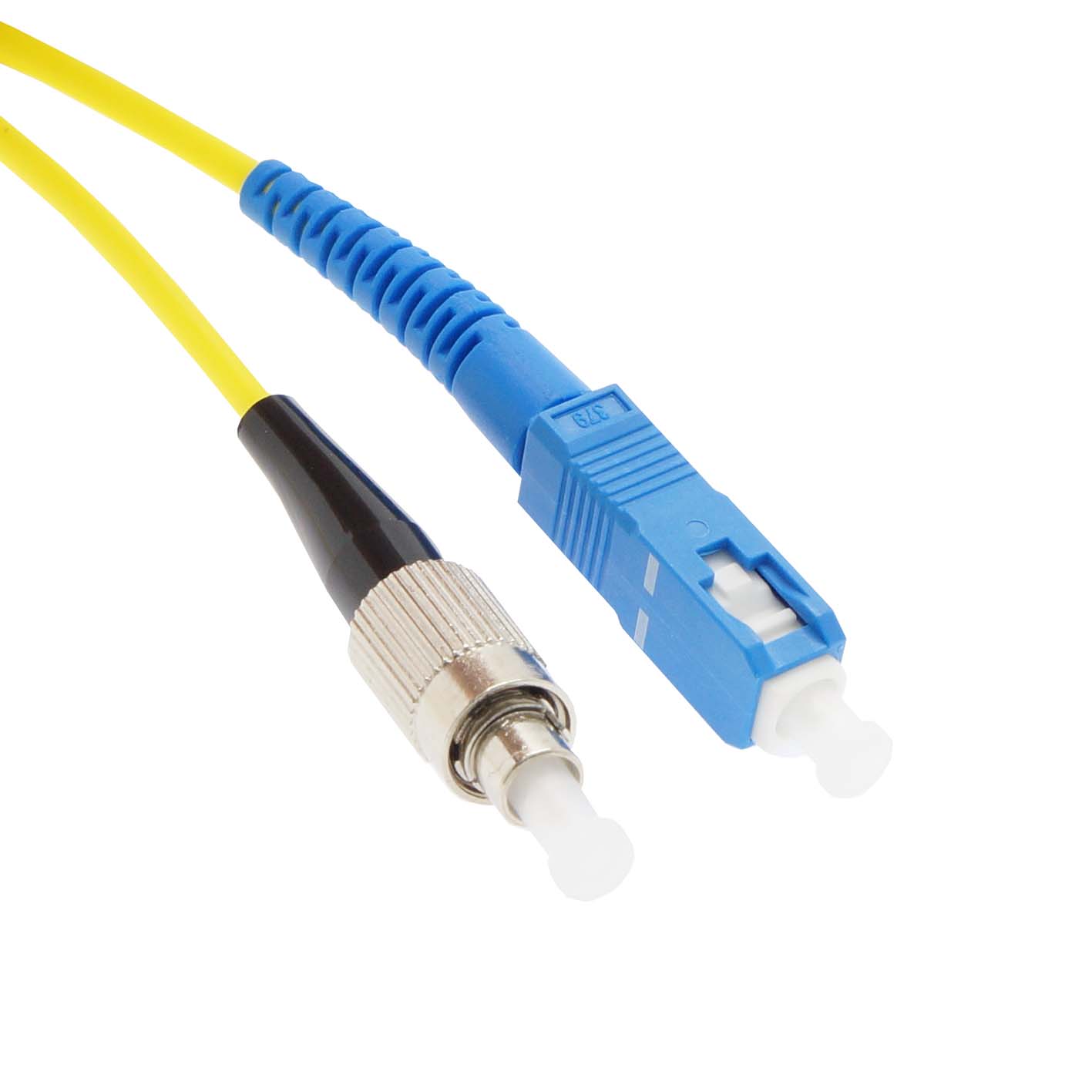

10m FC/UPC-SC/UPC Singlemode Simplex Fiber Optic Patch Cable
Description
* Used to connect patch panels and/or network devices that utilize FC to SC style connectors and require 9/125 Single mode cabling
* 100% tested
* 100% tested
* Test report included in each cable
| Connector Type | FC-SC Simplex Singlemode | ||
| Polishing | UPC | ||
| Return Loss | 55dB | ||
| Insertion Loss | 30dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Body type | Simplex | ||
| Nominal Diameter Core | 9/125 µm | ||
| Jacket Material | OFNR/LSZH | ||
| Operation Temperature Range | -20°C +70°C |
Specifications
| SKU | CM-105456BSTK |
|---|---|
| Color | Yellow |
| Cable Type | SingleMode |
| Jacket Material | OFNR/LSZH |
| Fiber Core | 9/125 µm |
| Fiber Duplex | Yes |
| Fiber Insertion loss | 30dB |
| Fiber Return Loss | 55dB |
